4.18

RTH

4.18

Family

Rotating Telescopic Handlers

Standards MET

CE Certification

EN 1459-2: concerning standards for slewing variable-reach trucks

EN 280: concerning standards for mobile elevating work platforms

FOPS Level 2/ROPS

UE 2016/1628: concerning engine emissions standards

EN 13000: concerning standards for hydraulic cranes

Applications

Warranty
Construction
Industry

Description

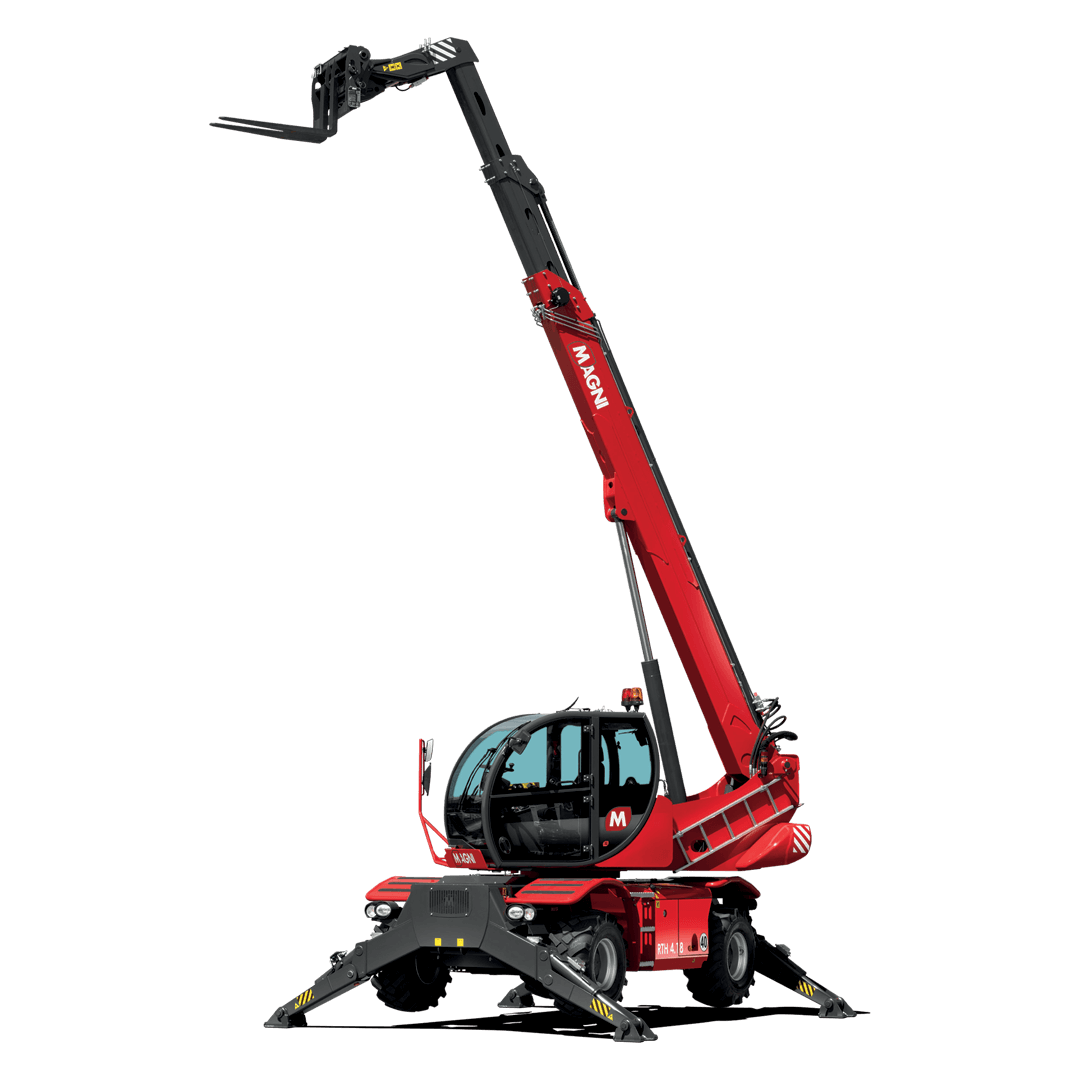

The RTH 4.18 is a rotating telescopic handler which is ideal both for construction sites and for hire fleets. Compact and multifunctional, it is compatible with a huge range of accessories, thanks also to the RFID system which provides automatic recognition and creation of the relative load charts; this telescopic handler is able to meet a wide range of applications in the construction industry. It is equipped with pivoting stabilisers with a large contact surface and a load monitoring system to protect against the risk of machine overload.

Technical Features

Stabilizers: pivoting

Lifting capacity: 8.800 lbs

Capacity at maximum height: 6.600 lbs

Lifting height: 58′

Outreach: 47′

Engine: Deutz TCD 3,6 L4 – Tier 4f

Nominal power: 55 kW (75 Hp) @ 2,200 rpm

Number of gears: 2/2

Hydraulic system: 270 bar

Length: 22′ 3”

Width: 8′ 4”

Clear light from the ground: 11”

Empty weight: 31.750 lbs

Speed of movement: 15 Mph

Rotation: 400° (limited)

Air conditioning as standard: No

Automatic accessory recognition: Yes

Standard Equipment

3 in 1: crane/forklift truck/safety cage
Registered cab design
FOPS/ROPS
MCTS
100% air filtration
Cup holder
R.F.ID
Four-wheel drive
Self Leveling
CAN bus
Best lifting performance
Gradeability 30°-40°

Attachments

  • Buckets

    The buckets complete the range of accessories in the Magni world, simplifying the processes in the...

  • Clamps

    Very specific accessories designed on stringent needs felt above all in the mining and extractive sector, and...

  • Fork Carriages

    Wide range to meet market needs and to assist our operators directly in the workplace. From the simplest fork...

  • Platforms

    Magni offers a wide range of platforms, from the simplest, in order to be able to reach the desired heights...

  • Specials

    Category entirely dedicated to accessories with very specific uses. These are codes used to carry out special...
